The flaking machine directly affects the oil yield of the oil plant. It is suitable for pressing different types of oil crops, softening and crushing soybeans, sunflowers, cottonseed, rapeseed, peanut, ramie and other oils and seed
Soybean oil,Corn oil,Sunflower oil processing -Multi-stage faking roll details
1. product description
The flaking mill is mainly composed of two (more) rotating roller (high alloy) which are opposite to each other. When the oil crops (soybean, peanut, cottonseed, etc.) passes through the middle of the two roller, the embryo piece is formed by the instantaneous pressing force. The oil is then refined and leached to form a finished edible oil, which is a typical extrusion force device.
The flaking mill is the first process in the pressing workshop of the vegetable oil processing enterprise. The necessary core equipment of the pretreatment equipment directly affects the oil yield of the oil plant. It is suitable for pressing different types of oil crops, softening and crushing soybeans, sunflowers, cottonseed, rapeseed, peanut, ramie and other oils and seed materials are pressed to change the tissue structure of the oil and fat, and different thickness of the embryo is pressed according to the characteristics of the oil, which is more conducive to the extraction of oil and the separation of oil and protein.

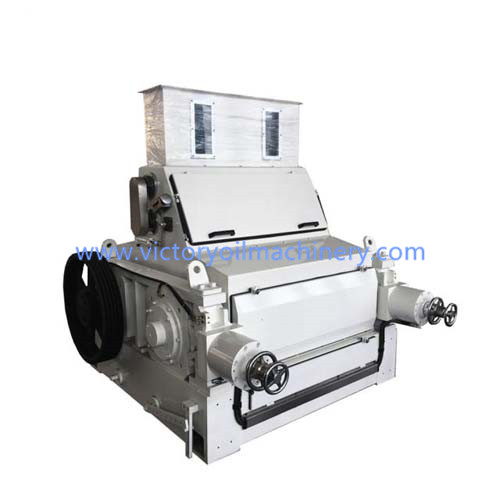

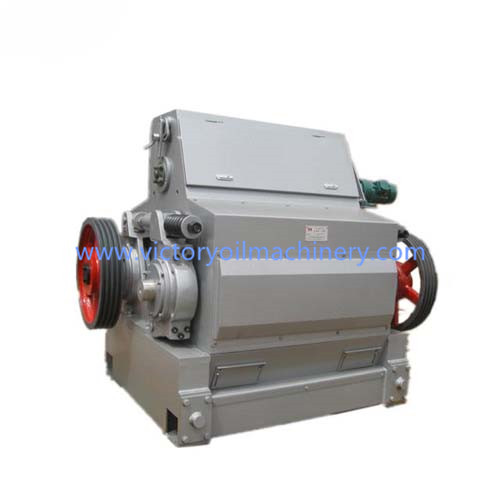

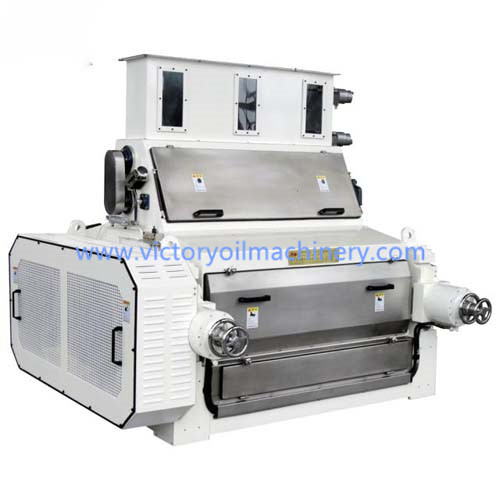

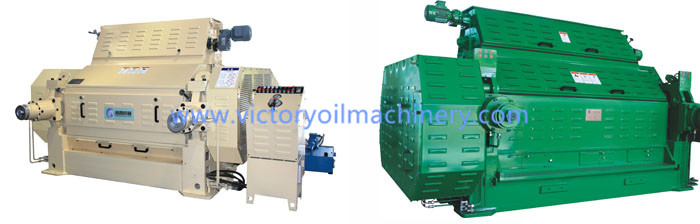

2.YYPYFP series anti-collision hydraulic flaking mill
2.1.Technical features
1) The roller is controlled by square bearing pedestal, which makes the operation more stable and reliable;
2) Unique design structure, convenient to directly adjust the thickness of the embryo piece, and reliable anti-collision function for the roller;
3) Compound feeding use uniform feeding roller and tooth roller to ensure more evenly and controllable feeding amount with frequency conversion;
4) Use centrifugal pressure casting of high alloy roller, with driving shaft assembly technology, strong structural rigidity, hot conduction oil can be filled in the roller body, and good working stability;
5) The electric pump of the hydraulic system adopts intermittent automatic operation, the system pressure is constant and reliable, and the energy saving effect is obvious;
6) Humanized design, highly operable equipment, stable embryo piece, low noise, long service life;
7) The electrical system can realize PLC automatic control;
8) Safety sealing protection.
2.2.Technical parameters
| Model | Capacity(T/24h) | Embryo pieces Thickness(mm) |
Power (Kw) |
Outside dimensions (mm) |
Weight (T) |
|
YYPYFP 2*60*100 |
80~100 | 0.25~0.35 | 22*2+0.55+2.2 | 1910×1670×1835 | ~6 |
|
YYPYFP 2*80*100 |
120~150 | 0.25~0.35 | 30*2+0.55+2.2 | 2250×2230×2100 | ~10 |
|
YYPYFP 2*80*125 |
180~200 | 0.25~0.35 | 37*2+0.55+2.2 | 2500×2230×2100 | ~13 |
|
YYPYFP 2*80*150D |
280~300 | 0.25~0.35 | 55*2(90)+1.1(0.75)+2.2 | 2760×2230×2150 | ~14 |
|
YYPYFP 2*81*220D |
450~500 | 0.25~0.35 | 160+1.1+1.1+3.0 | 3580×2420×2360 | ~25 |
3. Note:
1) In the column of equipment power, respectively express; Main motor, feeding drive motor (220 uniform feeding and feeding); Hydraulic pump station motor;
2) The D after the model is expressed as single motor drive, which can be selected by the user; without D is the standard type of dual motor drive;
3) Compound feeding motor (1.1kw) with uniform material feeding can be selected by 150 type; The standard type only has the tooth roller feed motor (0.75kw);
4) Customized as required according to the special specifications of users.
4 .Widely used
4.1 Machinable materials
1) Oil seed: Soybean, Sunflower, Canola, Corn germ, Cottonseed, Peanut, Corn, Sesame, Tea-oil, Olive, Tung tree, Oil palm, Flax, Almond, Camelia and etc.
2) Grain&Cereal: Oat, Rye, Wheat, Barley, Corn, Brown rice, Sorghum, Coix, Millet, Buckwheat, Black rice, Rice and etc.
3) Nut: Peanut, Almond, Chestnut, Cashew, Walnut, Pine nut and etc.
4) Kernel fruit: Coconut, Grapestone and etc.
5) Spice: Curry, Ginger, Pepper, Coffee bean and etc.
6)Chinese herbal medicine: Ganoderma spore and etc.
4.2 Applicable industry
Edible oil, Biorefinery, Biofuel, Protein, Chemcial, Auxiliaries, Coating, Grain, Livestock feed, Pet food, Starch, Puffed breakfast food, Nuts oil, Chinese herbal medicine, Oleochemcial, Oilfield additives production industry.
4.3 Related equipments
1) Our own manufacturing: Flaking mill, Crushing mill, Hulling machine, Bar huller, Kernel husk separator, Grinding mill, Flaking roller mill, Roll grinder, Grinding&Fluting machine, Oil residue pump, Hydraulic pump station, Roll&Tooth roll and etc.
2) Our partner manufacturing: Complete edible oil processing line equipment, Complete livestock feed production line equipment, Complete puffed breakfast food processing line equipment and etc.
