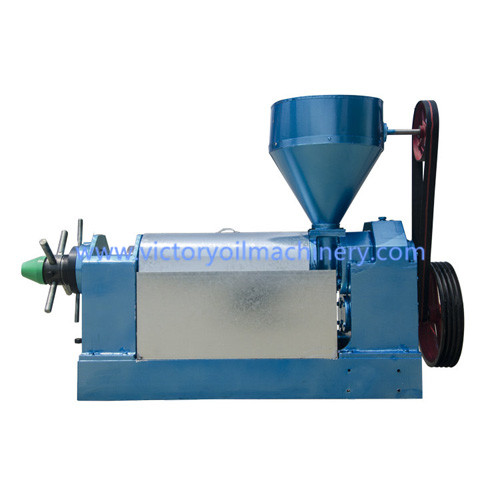

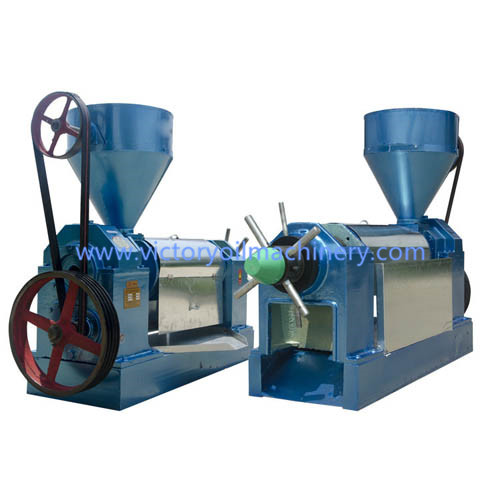

YZYX140A Screw Oil Press Machine
- Henan Victor Machinery Equipment Co.,Ltd
- Made In China
- Oil Press Machine-12
To meet the needs of different customers.This machine inherits the advantages of various screw oil presses, and has the features of beautiful shape, stable and reliable operation, high output, low energy consumption, simple operation and maintenance.
YZYX140A Screw Oil Press Machine details
1. YZYX140A Screw Oil Press Introduction
Based on the continuous summary of practical experience in the production of similar models,YZYX140 Screw Oil Press is the latest series of Medium Screw Oil Press products independently developed by our company.To meet the needs of different customers.This machine inherits the advantages of various screw oil presses, and has the features of beautiful shape, stable and reliable operation, high output, low energy consumption, simple operation and maintenance, low operating cost, etc.Suitable for new and old users to choose.and it is an ideal machine for processing rapeseed, peanut kernel, soybean, cottonseed and other vegetable oils.
This product conforms to the Technical Conditions of Agricultural Screw Oil Press JB/T9793-2013, the machinery industry standard of the People's Republic of China.
This product conforms to the Technical Conditions of Agricultural Screw Oil Press JB/T9793-2013, the machinery industry standard of the People's Republic of China.
2. Working Principle of 140A Screw Oil Press machine
When the oil press machine works, pour the pre-treated oil cake into the chamber from the hopper. When the screw rotates, it continuously pushes the oil cake inward. Through the mutual extrusion of the chamber, the screw and the oil cake, the oil in the oil cake is extruded and discharged from the drainage tank of the oil press.
3. Technical Parameters of 140A Screw Oil Press machine
1.Speed of screw shaft 32～42r/min
2.Screw speed of pressing material 19～28r/min
3.Speed ratio of reducer 11.526
4.Power motor 15kw（Y160L-4）or 18.5 kw（Y180M-4）
5.Overall dimensions(Length × Width × height (mm))
2140×800×1450 (Without electricity frame)
6.Single Weight 1150kg(excluding motor)
7.Performance index:
Medium quality raw materials, in the cleaning, peeling (separation), crushing (rolling embryo), steaming and frying and other reasonable process flow, complete auxiliary equipment, normal operation, using hot pressing method (pressing once) continuous production can achieve the performance index.
| Name | 24 hours capacity（pressing once/T） | Oil extraction rate（%） | Residual oil rate of dry cake（%） |
|---|---|---|---|
| Rapeseed | ≥11 | ≥92 | ≤7.0 |
| Cottonseed | ≥9 | ≥90 | ≤7.0 |
| Soybean | ≥9 | ≥92 | ≤7.0 |
| Peanut kernel | ≥10 | ≥93 | ≤7.0 |
Remarks: It is normal if the actual results are different from the indicators in the above table due to regional differences in pressing conditions and operating habits, as well as oil varieties and quality.
4. Advantages of 140A Screw Oil Press machine
The internal structure of the system is optimized on the basis of summing up practical experience.
Compared with ordinary oil press machines, the pressure inside the chamber of the oil press of this machine is higher and the distance of embryo in the chamber is longer, which improves the oil extraction efficiency and reduces the residual oil rate.
The fragile parts of the equipment are made of high quality alloy steel, which greatly improves the overall service life of the equipment.
Compared with ordinary oil press machines, the pressure inside the chamber of the oil press of this machine is higher and the distance of embryo in the chamber is longer, which improves the oil extraction efficiency and reduces the residual oil rate.
The fragile parts of the equipment are made of high quality alloy steel, which greatly improves the overall service life of the equipment.
5. Our Services of 140A Screw Oil Press machine
Pre-Sale Service
1.Online 24 hours .Your inquiry will be replied quickly via email and you can also ask questions via any online chat tool (WeChat, Whatsapp, Skype, Viber, QQ).
2.Professional and patient introduction, detailed pictures and working video to display the machine.
Sale Service
1.Test and inspect each machine seriously .
2.Send the picture of the machine you ordered to confirm whether the machine is in normal condition and then pack it in standard export wooden cases.
3.Delivery: Deliver by sea.Take it to the harbor.We'll tell you the time of shipment and arrival.Finally, all the original documents will be sent to you free of charge by Courier.
If it is sent to you by express (DHL, TNT, fedex, etc.), we will tell you the tracking number after delivery.
After-Sales Service
1.Free insurance for goods.
2.24 hours online to solve any problem . Supply you English manual book and technical support,maintain and install video to help you solve the problem, or dispatch worker to your factory.
1.Online 24 hours .Your inquiry will be replied quickly via email and you can also ask questions via any online chat tool (WeChat, Whatsapp, Skype, Viber, QQ).
2.Professional and patient introduction, detailed pictures and working video to display the machine.
Sale Service
1.Test and inspect each machine seriously .
2.Send the picture of the machine you ordered to confirm whether the machine is in normal condition and then pack it in standard export wooden cases.
3.Delivery: Deliver by sea.Take it to the harbor.We'll tell you the time of shipment and arrival.Finally, all the original documents will be sent to you free of charge by Courier.
If it is sent to you by express (DHL, TNT, fedex, etc.), we will tell you the tracking number after delivery.
After-Sales Service
1.Free insurance for goods.
2.24 hours online to solve any problem . Supply you English manual book and technical support,maintain and install video to help you solve the problem, or dispatch worker to your factory.
