Our company can design this granary according to your needs. The granary equipment can be shipped in China, or engineers can go abroad to install and weld the granary. We have more than 30 years of experience in granary design and construction.
Grain Storage Silo details
Product Application
1. Our hopper bottom steel silo series is specially designed by senior engineers in our company, with high-quality galvanizing board.
2. Hopper angles can be 45° and 60°,among which 60° conical bottom is usually used to store larger pellet and powder materials with high viscosity.
3. All silos are precision engineered from high strength, 80mm x 14mm low profile corrugated steel plate, normally galvanised to 275 g/m2.
4. The life cycle of the silos can come up to 30-50 years long. The products are designed comply with the national standard of GB50322-2001.
5. Our hopper bottom steel silos provide the best quality grain storage option available.Erection of the most popular 250t, 500t and 1,000t silos is straightforward,and can typically be completed in around 10 days per silo.

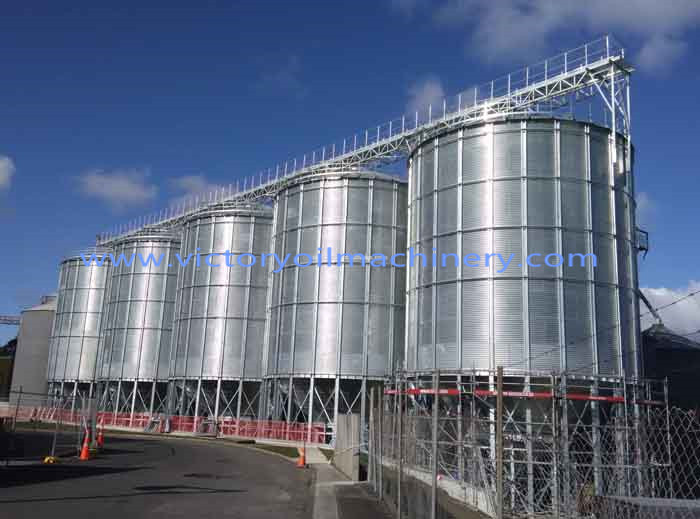

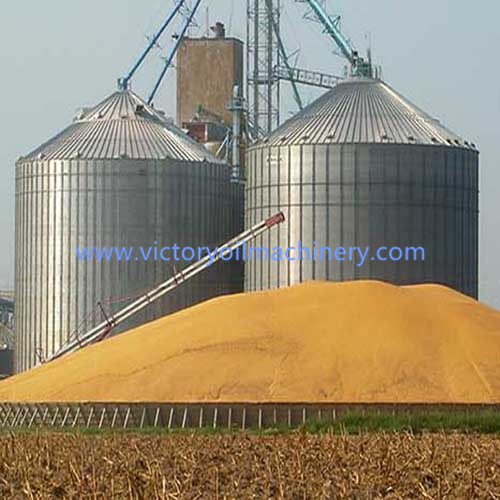

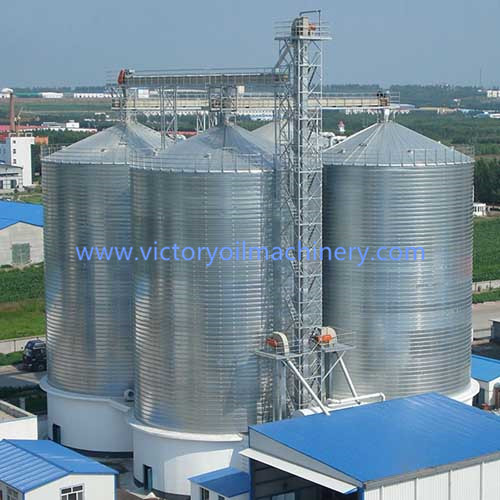

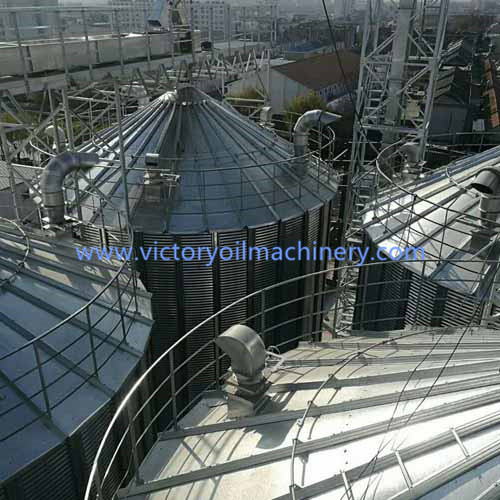

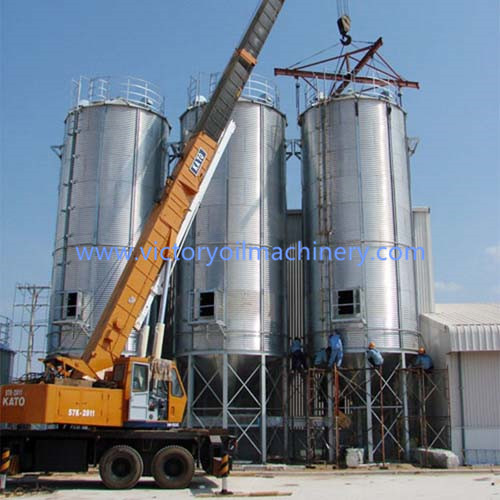

Below photo shows some Silos For Grain Storage projects we have done.
2. Hopper angles can be 45° and 60°,among which 60° conical bottom is usually used to store larger pellet and powder materials with high viscosity.
3. All silos are precision engineered from high strength, 80mm x 14mm low profile corrugated steel plate, normally galvanised to 275 g/m2.
4. The life cycle of the silos can come up to 30-50 years long. The products are designed comply with the national standard of GB50322-2001.
5. Our hopper bottom steel silos provide the best quality grain storage option available.Erection of the most popular 250t, 500t and 1,000t silos is straightforward,and can typically be completed in around 10 days per silo.

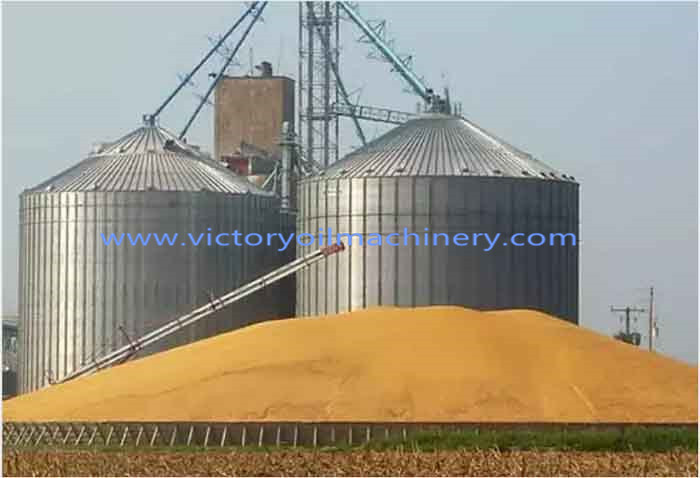

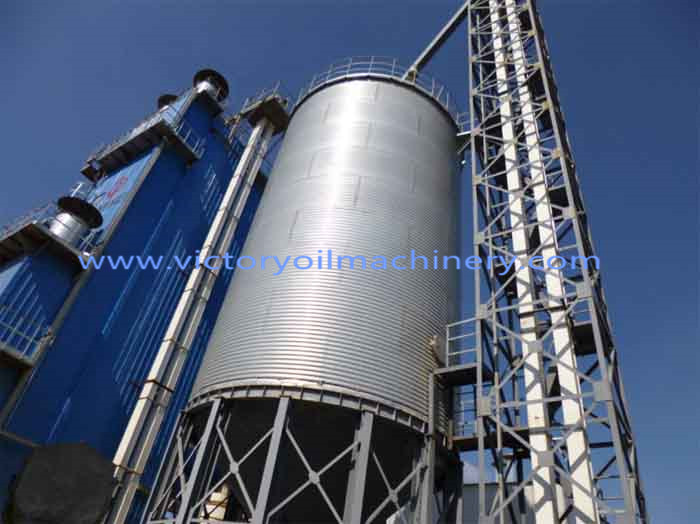

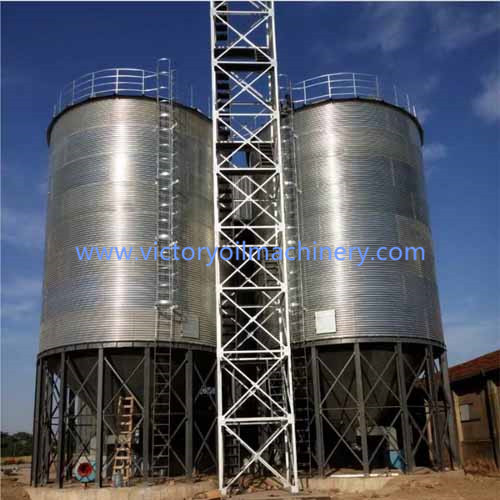

Below photo shows some Silos For Grain Storage projects we have done.
Bolted silo capacity from 50~1855 m³
| Main grains physical properties | |||||
| Grain name | Gravity density | Mass density | Internal friction angle | Friction coefficient | |
| kN/m³ | kN/m³ | ° | concrete | steel sheet | |
| paddy | 6 | 550 | 35 | 0.5 | 0.35 |
| rice | 8.5 | 790 | 30 | 0.42 | 0.3 |
| maize | 7.8 | 720 | 28 | 0.42 | 0.32 |
| wheat | 8 | 750 | 25 | 0.4 | 0.3 |
| soybean | 7.5 | 700 | 25 | 0.4 | 0.3 |
| flour | 6 | 600 | 40 | 0.4 | 0.3 |
| sunflower seed | 5.5 | 30 | 0.4 | 0.3 | |
| barley | 6.5 | 27 | 0.4 | 0.4 | |
| bran | 4 | 40 | 0.3 | 0.3 | |
| Grain name | ||||||||
| Silo Type | Capacity(m ³) | Rings | Height(m) | Bulk density (T) | ||||
| Eave height | Peak height | maize | paddy | wheat | soybean | |||
| 0.72 | 0.55 | 0.75 | 0.7 | |||||
| JSZP10009 | 872 | 11 | 10.135 | 12.485 | 627.84 | 479.6 | 654 | 610.4 |
| JSZP10010 | 961.4 | 11.255 | 13.605 | 692.208 | 528.77 | 721.05 | 672.98 | |
| JSZP10011 | 1050.8 | 12.375 | 14.725 | 756.576 | 577.94 | 788.1 | 735.56 | |
| JSZP10012 | 1140.2 | 13.495 | 15.845 | 820.944 | 627.11 | 855.15 | 798.14 | |
| JSZP10013 | 1229.6 | 14.615 | 16.965 | 885.312 | 676.28 | 922.2 | 860.72 | |
| JSZP10014 | 1319 | 15.735 | 18.085 | 949.68 | 725.45 | 989.25 | 923.3 | |
| JSZP10015 | 1408.4 | 16.855 | 19.205 | 1014.048 | 774.62 | 1056.3 | 985.88 | |
| JSZP10016 | 1497.8 | 17.975 | 20.325 | 1078.416 | 823.79 | 1123.35 | 1048.46 | |
| JSZP10017 | 1587.2 | 19.095 | 21.445 | 1142.784 | 872.96 | 1190.4 | 1111.04 | |
| JSZP10018 | 1676.6 | 20.215 | 22.565 | 1207.152 | 922.13 | 1257.45 | 1173.62 | |
| JSZP10019 | 1766 | 21.335 | 23.685 | 1271.52 | 971.3 | 1324.5 | 1236.2 | |
| JSZP10020 | 1855.4 | 22.455 | 24.805 | 1335.888 | 1020.47 | 1391.55 | 1298.78 | |
Main features of 1000T grain silo
1. Automatic-flow unloading; save resources and costs;
2. Hopper angles can be 45° and 60°;
3. Could be movable; easily to be installed;
4. Do not need a serious concrete, labor and energy cost; less grain residues in steel grain silo;
5. Hopper structure prevents loss of time and money during the unloading period.
Specification
| Factory Supplier 1000ton Wheat Corn Grain Storage Steel Silo price for Sale | |||
| Details | Materials | Quality Standard | Features |
| Body Plate |
By Hot Dip Galvanized Steel Plate, 275-600g/m2 Galvanization |
China National Standard with Quality Report | Our Corrugated Steel Plate Production Line is controlled by advanced CNC equipments |
| Bolts and Screws | Hot Dip Galvanized, Strengthened, with hex flange for Max Sealing | Quality Strength Report | Hot dip galvanized with longer life |
| Wind Ring | The wind ring is attached directly to the stiffeners. The rings strengthen the silo providing reinforcement against damaging wind. | China National Standard with Quality Report | Rigorous calculation to meet the anti-wind needs for sea port area or windy area |
| Silo door with platform | A standard manhole door is located in the second ring of the silo. Double size door with strong frame and block system. | China National Standard with Quality Report | Easy to inspect and maintenance. |
| Stairs | we offer both ladders and stairs as outside climbing options. All of them have handrail or safety guard. | China National Standard with Quality Report | Can be installed inside and outside of the silo, Easy to inspect and maintenance. |
| Inside Ladder | Ladder inside silo, simple vertical or cage type | China National Standard with Quality Report | |
