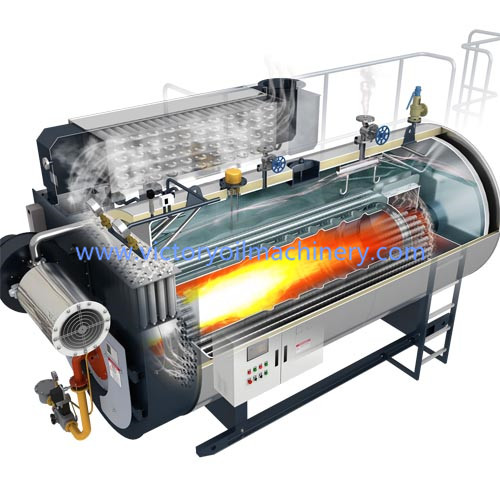

WNS series oil/gas boiler adopts horizontal three-pass wet-back structure, large-scale corrugated furnace and patented screw tube technology, equipped with international first-class brand burners, durable and low failure rate
Gas Or Oil Steam Boiler details
Victory 0.5 ton to 40 ton industrial steam boiler for sale
Product Description
WNS series oil/gas fired boiler adopts horizontal three-pass wet-back structure,large corrugated furnace and patented thread pipe technology,equipped with international first-level brand burners and valve groups,and independently developed high-matching PLC control system to realize muitiple linkages.The lock protection function protects the equipment running safely.
1. Technical data
| Boiler Model | WNS1 | WNS1.5 | WNS2 | WNS3 | WNS4 | WNS5 | WNS6 | WNS8 | WNS10 | WNS15 | WNS20 | |
| Rated steam capacity(T/H) | 1 | 1.5 | 2 | 3 | 4 | 5 | 6 | 8 | 10 | 15 | 20 | |
| Rated steam pressure(Mpa) | 1.0/1.25/1.6/2.5 | |||||||||||
| Rated steam temperature(℃) | 184/194/204/226 | |||||||||||
| Feed water temperature(℃) | 20/104 | |||||||||||
| Thermal efficiency(%) | >98 | |||||||||||
| Nox emission(mg/m3) | 120/80/30 | |||||||||||
| Exhaust gas temperature(℃) | <60 | |||||||||||
| Fuel type | Light diesel oil/Heavy oil/Natural gas/Liquefied gas/City gas | |||||||||||
| Fuel consumption | Light diesel oil(kg/h) | 64.6 | 100.2 | 129.3 | 192.9 | 258.2 | 321.6 | 388.6 | 514.6 | 641.7 | 960.1 | 1276.2 |
| Natural gas(Nm3/h) | 70.1 | 110.3 | 140.3 | 212.1 | 283.4 | 350.2 | 424.2 | 566.3 | 707.8 | 1061.7 | 1415.8 | |
| Max transportation weight(t) | 5.5 | 6.5 | 8.0 | 10.7 | 11.6 | 14.6 | 17.5 | 22.5 | 26.8 | 35.2 | 45.5 | |
2. Boiler accessories
